Alarms

Alarms

Get Test Certificate from Qcept App

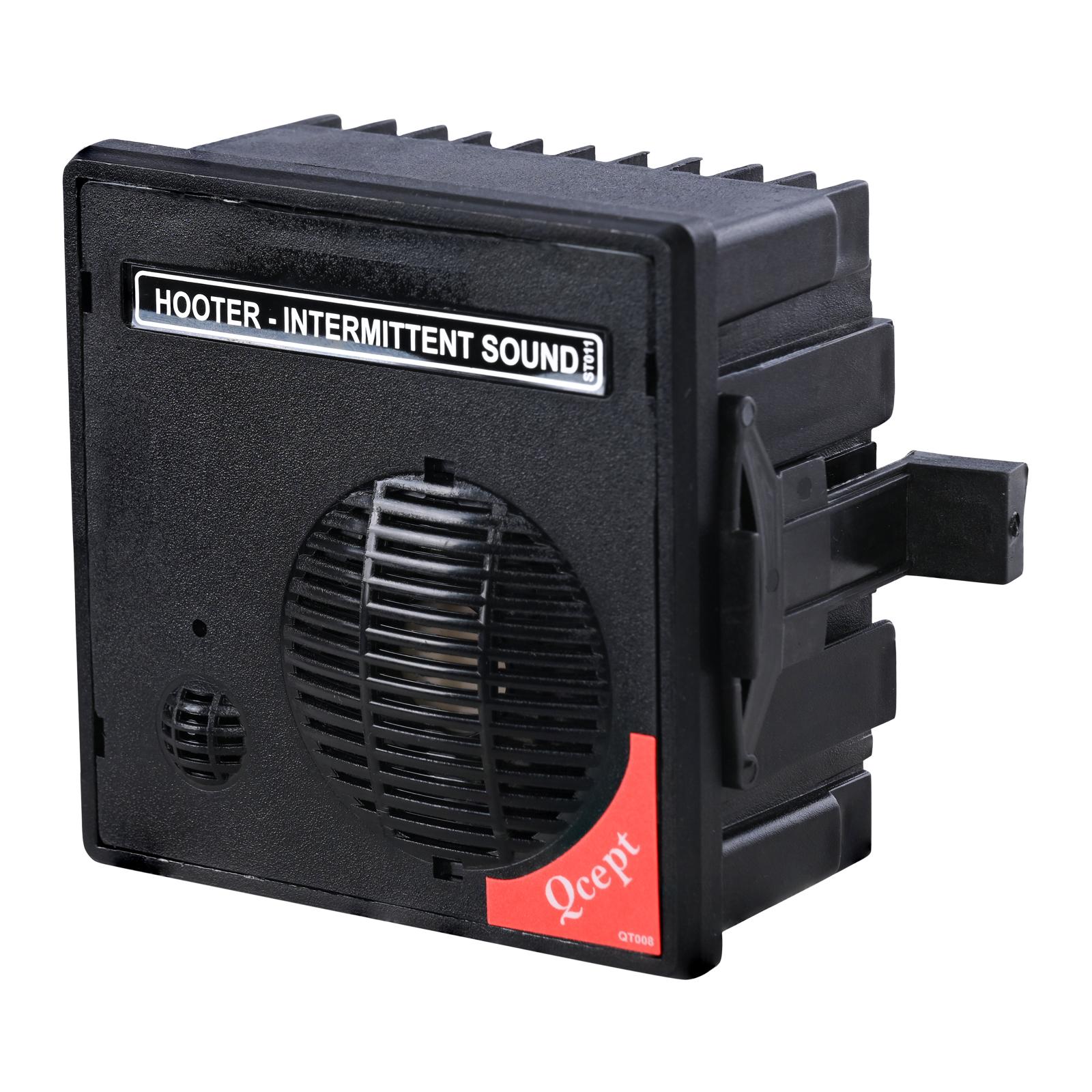

1283a55cee-Hooter side view
db7d22eee0-Hooter

Electronic Hooter

SpecificationDetails
Number of Windows4 to 64 windows
Small Window Size34 × 37 mm
Big Window Size34 × 74 mm
Panel Cutout Size147 (H) × E (W) mm
Auxiliary Supply Voltage10–36 V DC / 20–56 V DC / 60–300 V DC
Standby Power Supply230 V AC
Communication InterfaceRS-485
DC Fail IndicationProvided
AC Fail IndicationProvided
  • Universal input: 20 to 275V DC/AC
  • Sound: Itermittent sound
  • Ouput Sound : 90 to 95 dB
  • Panel cutout: 92 x 92 mm
  • Front Facia: 96 Sq. mm
Quote / brochure

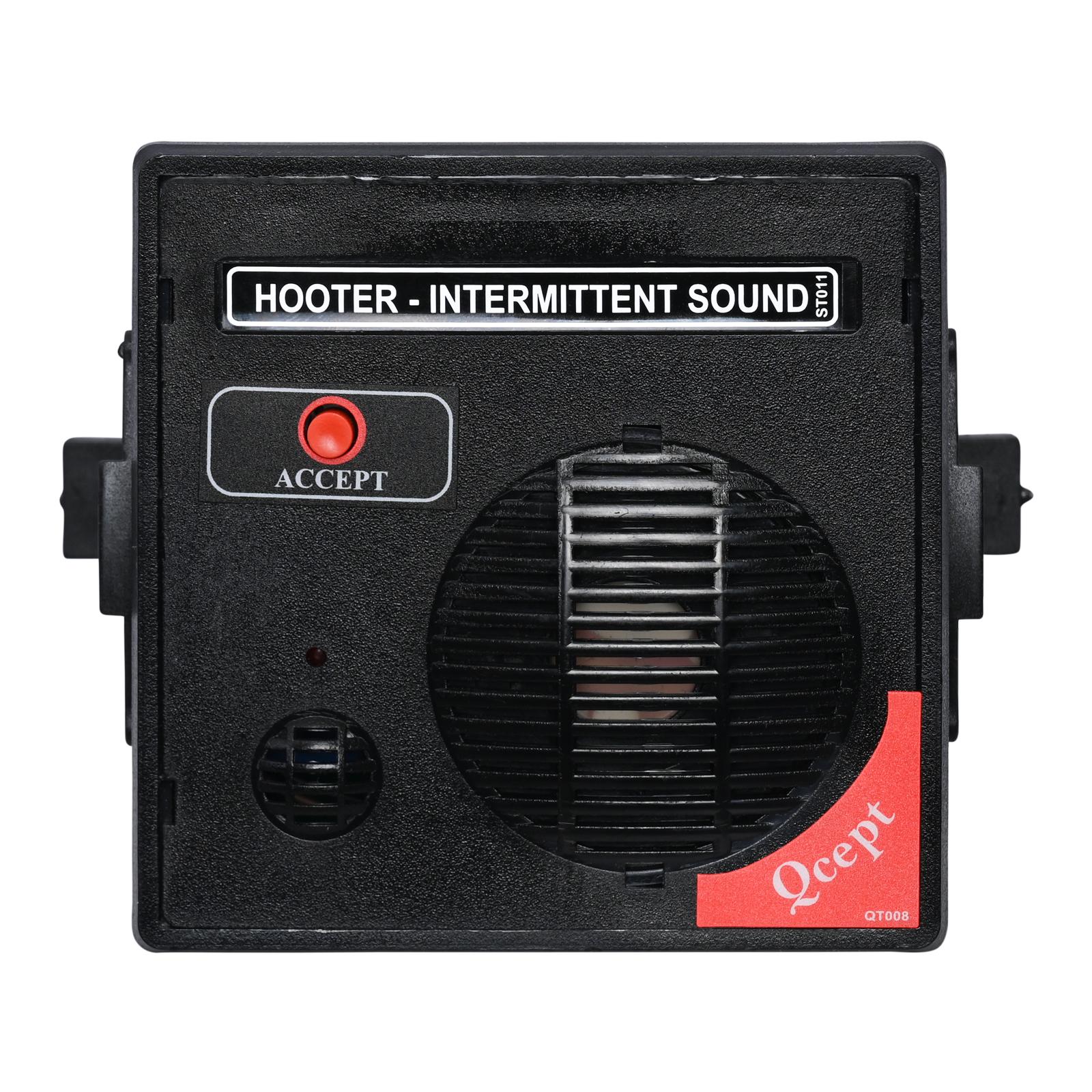

58d1feead1-Hooter with Accept PB-1
d8d015e0c7-Hooter - Accept PB

Hooter with accept push button

SpecificationDetails
Windows Available8 to 64 windows
Window Size – Small34 × 37 mm
Window Size – Big34 × 74 mm
Panel Cutout Size147 (H) × E (W) mm
Auxiliary Supply24V, 30V, 48V, 110V, 220V DC
Input TypePositive or Negative Voltage (Fixed Voltage)
  • Universal input: 20 to 275V DC/AC
  • Sound: Itermittent sound
  • Accept push botton
  • Ouput Sound : 90 to 95 dB
  • Panel cutout: 92 x 92 mm
  • Front Facia: 96 Sq. mm
Quote / brochure

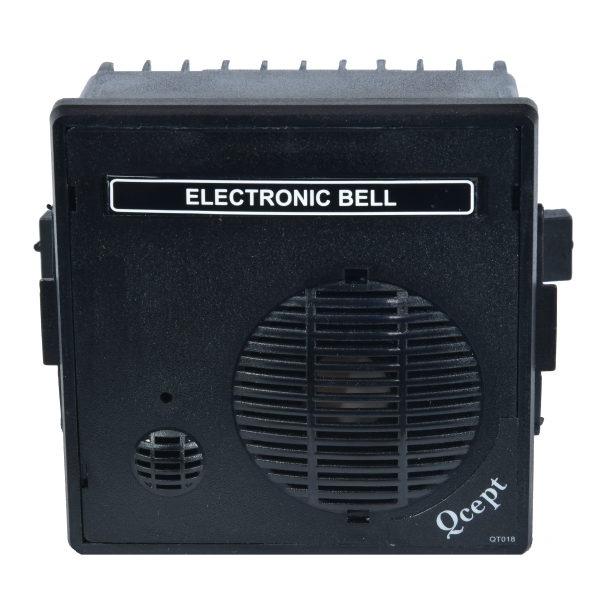

Frame 95 (3)

Electronic Bell

SpecificationDetails
Windows Available4 to 64 windows
Window Size – Big34 × 74 mm
Window Size – Small34 × 37 mm
Panel Cutout Size147 (H) × E (W) mm
Auxiliary Supply10–36 V DC, 20–56 V DC, 60–300 V DC
Standby Power Supply230 V AC
Communication InterfaceRS-485
DC Fail IndicationProvided
AC Fail IndicationProvided
Inbuilt HooterAvailable
  • Universal input: 20 to 275V DC/AC
  • Sound: Bell Sound
  • Ouput Sound : 90 to 95 dB
  • Panel cutout: 92 x 92 mm
  • Front Facia: 96 Sq. mm
Quote / brochure

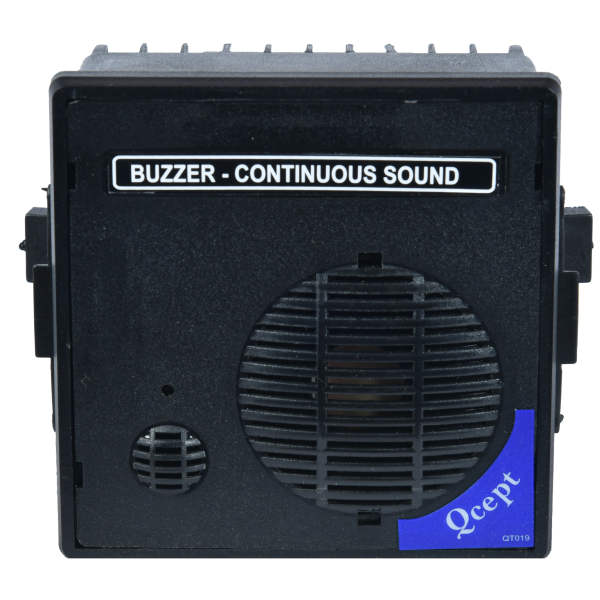

Frame 95 (2)

Electronic Buzzer

SpecificationDetails
Windows Available4 to 64 windows
Window Size – Big34 × 74 mm
Window Size – Small34 × 37 mm
Panel Cutout Size147 (H) × E (W) mm
Auxiliary Supply10–36 V DC, 20–56 V DC, 60–300 V DC
Standby Power Supply230 V AC
Communication InterfaceRS-485
DC Fail IndicationProvided
AC Fail IndicationProvided
Inbuilt HooterAvailable
  • Universal input: 20 to 275V DC/AC
  • Sound: Continuous sound
  • Ouput Sound : 90 to 95 dB
  • Panel cutout: 92 x 92 mm
  • Front Facia: 96 Sq. mm
Quote / brochure

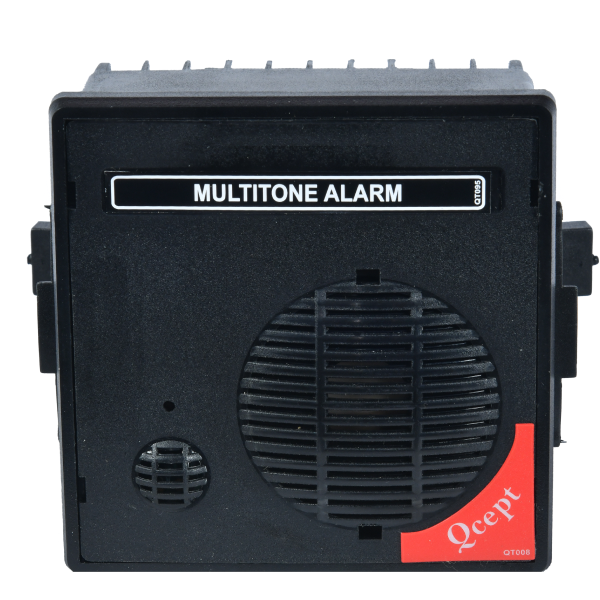

Frame 95 (1)

Multi-tone alarm 2DC +1AC

SpecificationDetails
Windows Available4 to 64 windows
Window Size – Big34 × 74 mm
Window Size – Small34 × 37 mm
Panel Cutout Size147 (H) × E (W) mm
Auxiliary Supply10–36 V DC, 20–56 V DC, 60–300 V DC
Standby Power Supply230 V AC
Communication InterfaceRS-485
DC Fail IndicationProvided
AC Fail IndicationProvided
Inbuilt HooterAvailable
  • Input voltage rating : 20 to 275V DC and 230V AC
  • Tone: 3 tones: Intermittent, continuous and bell sound
  • Input: If any two or three inputs are given simultaneously, then all three sounds will comes in 3sec interval
  • Output Sound : 90 to 95 dB
  • Depth : 45mm
  • Panel cutout : 92x92 mm
  • Front Facia: 96 Sq. mm
Quote / brochure
image 43 (1)
image 44 (1)
image 45 (1)
image 46 (1)

Annunciator with inbuilt Hooters (Speaker non visible)

Specification Details
Windows Available 4 to 64 windows
Window Size – Big 34 × 74 mm
Window Size – Small 34 × 37 mm
Panel Cutout Size 147 (H) × E (W) mm
Auxiliary Supply 10–36 V DC, 20–56 V DC, 60–300 V DC
Standby Power Supply 230 V AC
Communication Interface RS-485
DC Fail Indication Provided
AC Fail Indication Provided
In-Visible Hooter Available
  • Windows Available : 4 to 64 windows
  • Window size - Big windows : 34 x 74 mm & Small windows : 34 x 37 mm
  • Panel cutout: 147(H) x E (W) mm
  • Aux. Supply : 10 to 36V DC, 20 to 56V DC, 60 to 300V DC
  • With Stand By power supply: 230VAC
  • With RS 485 communication
  • With Dc fail & AC Fail indication
  • With in -visible hooter
Quote / Brocher
image 47 (1)
image 48 (1)
image 49 (1)

Annunciator with PLC input type

SpecificationDetails
Windows Available16, 24, 32, 40, 48
Auxiliary Supply Range10–36 V DC, 20–56 V DC, 60–300 V DC/AC
Window Colour OptionsAll Red, All Yellow, All White, Red & White, Red & Yellow
Input TypeDigital input from PLC or other compatible devices
Response Time< 50 ms
Inbuilt Push ButtonsTEST, ACCEPT, RESET
  • Windows Available: 16,24, 32, 40, 48
  • Aux supply range : 10 to 36V DC, 20 to 56V DC, 60 to 300V DC/AC
  • Window colour: All Red, All Yellow, All White, Red & White, Red & Yellow
  • Input type: Digital input from PLC or any other product
  • Response time: <50msec
  • With inbuilt Push buttons for TEST, ACCEPT AND RESET
Quote / Brocher
Frame 73
Frame 74

Annunciator 96 Sq. mm – type - S

SpecificationDetails
Windows Available4, 5, 6, 7 & 8 windows
Window Size – Big23 (H) × 38 (W) mm
Window Size – Small18 (H) × 38 (W) mm
Panel Cutout Size92 (H) × 92 (W) mm
Auxiliary Supply10–36 V DC, 20–56 V DC, 60–300 V DC
Inbuilt BuzzerPiezo Buzzer
Output Contact2 NO contacts for alarm
  • Windows Available : 4, 5, 6, 7 and 8 windows
  • Window size - Big widnows : 23(H) X 38(W) mm
  • Small windows : 18(H) X 38(W) mm
  • Panel cutout: 92(H) x 92 (W) mm
  • Aux. Supply : 10 to 36V DC, 20 to 56V DC, 60 to 300V DC
  • With inbuilt Piezo buzzer
  • Output contact:- 2 NO contact for alarm
Quote / Brocher
Frame 74 (3)
Frame 74 (2)
Frame 74 (1)

Annunciator 96 Sq. mm – Type - M

SpecificationDetails
Windows Available4 & 8 windows
Window Size – Big29 (H) × 39 (W) mm
Window Size – Small14 (H) × 39 (W) mm
Panel Cutout Size92 (H) × 92 (W) mm
Auxiliary Supply10–36 V DC, 20–56 V DC, 60–300 V DC
Inbuilt HooterAvailable
Output Contact2 NO contacts for alarm
Field InputPotential-free input
  • Windows Available : 4 and 8
  • Window size - Big windows : 29 (H) x 39(W) mm & Small windows : 14(H) x 39 (W) mm
  • Panel cutout: 92(H) x 92 (W) mm
  • Aux. Supply : 10 to 36V DC, 20 to 56V DC, 60 to 300V DC
  • With inbuilt Hooter
  • Output contact:- 2 NO contact for alarm
  • Field input – Potential free input
Quote / Brocher
Frame 75
Frame 73 (1)

ANNUNCIATOR – 16 CHANNEL – 96 SQ. mm

SpecificationDetails
Controller TypeMicrocontroller-based
LED TypeSingle high-bright LED per window
Auxiliary Supply20–56 V DC and 60–300 V DC/AC
Front InscriptionsReplaceable
Panel Cutout Size92 × 92 mm
Front Size96 sq. mm
  • Microcontroller based
  • Single High Bright LED per window
  • Aux supply: 20 to 56V DC and 60 to 300V DC/AC
  • Front Inscriptions replaceable
  • Panel cutout: 92 x 92 mm
  • Front: 96 Sq. mm
Quote / Brocher
image 51 (1)
image 50 (1)

Facia Unit (status Indicators)

SpecificationDetails
Window IlluminationUltra high-bright SMD LED
FunctionContinuous status indication (Healthy / Trip)
Display TypeLED indication with legend windows
Input TypeFixed AC or DC positive voltage input
Inbuilt Push ButtonWindow test button
  • Window illumination: Ultra high bright SMD LED
  • Function: Continuous status indication (healthy/ trip)
  • Display type: LED indication with legend windows
  • Input type: Fixed AC or DC Positive voltage input
  • Built in push button for Window Test
Quote / Brocher

LCD Annunciators

Advanced annunciator systems with LCD display for clear, detailed alarm messages and real-time status indication. Designed for accurate monitoring, easy readability, and reliable performance in substation and industrial applications.
Quote / Brocher

LCD Annunciator – 96 Sq. mm

Compact LCD annunciator designed in a 96 sq. mm format for space-efficient panel mounting. Provides clear alarm messages, real-time status indication, and reliable performance for substation and industrial control applications.
Quote / Brocher
